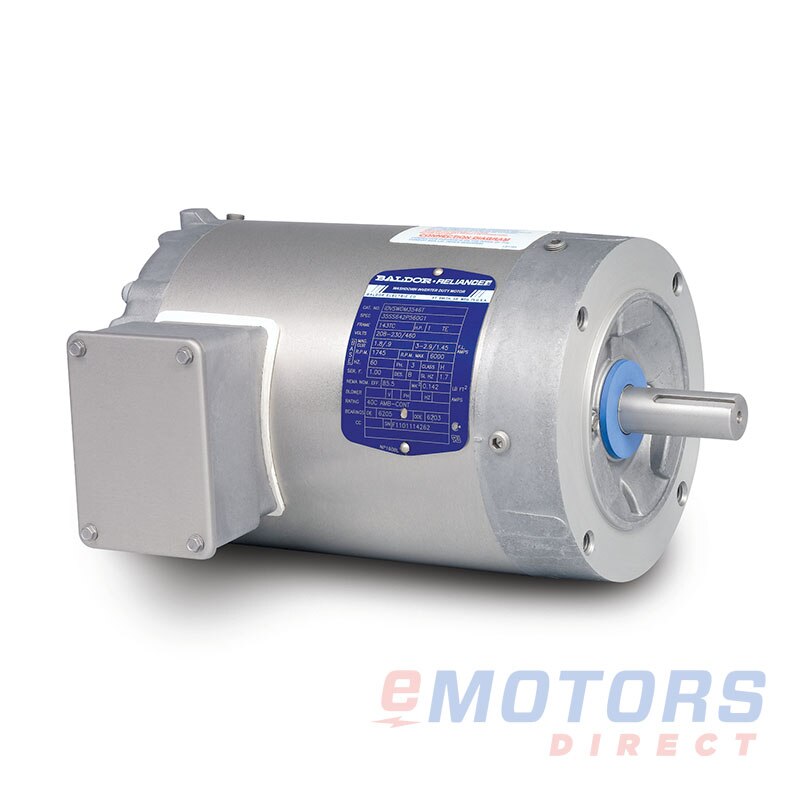

Baldor IDVSWDM3546T

Baldor · Paint-Free, three phase, C-face footless, Inverter Duty
1 HP 1770 143TC TENV 230V|460V Washdown Motors
Catalog Number: IDVSWDM3546T
HP
1
RPM
3600
Voltage
208-230V,460V
Frame
143TC
Phase
3
Enclosure
TENV
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

The Baldor Paint-Free three-phase, C-face footless motor, designed for inverter duty, provides exceptional performance and durability in a variety of demanding applications. Constructed from 300 series stainless steel, it features a corrosion-resistant motor frame, endplates, conduit box, shaft, base, and hardware. The motor is equipped with sealed ball bearings and a non-contact rotating labyrinth seal for reliable protection against contaminants. With no exterior paint, it eliminates the risk of peeling or degradation, ensuring longevity and minimal maintenance. Ideal for inverter-driven systems, this motor is perfect for food processing, outdoor use, and packaging. Backed by a 3-year warranty, it offers reliable and efficient operation in challenging environments.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Paint-Free, three phase, C-face footless, Inverter Duty

Features

  • Motor frame, endplates, conduit box, shaft, base, and hardware made from durable 300 series stainless steel
  • Sealed ball bearings for enhanced reliability
  • Non-contact rotating labyrinth seal for superior protection
  • No exterior paint to prevent peeling or degradation
  • Includes a 3-year warranty for added peace of mind

Applications

  • Ideal for food processing environments
  • Suitable for outdoor use
  • Perfect for packaging applications
Electrical Data
Rated Motor Output Power
1 HP
Rated Motor Speed
1800-3600 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
1.4 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
3
Service Factor
1
KVA Code
M
Nominal Efficiency
85.5
Nominal Power Factor
76
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
143TC
Enclosure
TENV
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
40lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.12"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
3-Year
