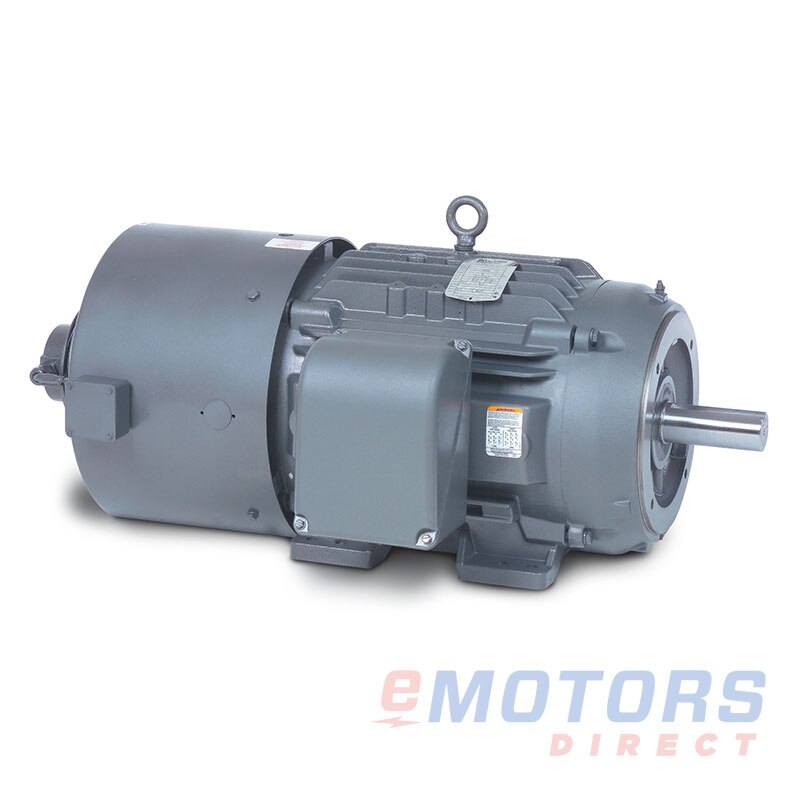

Baldor IDM3770T

Baldor · V*S Master, Inverter Duty, TEBC
7 1/2 HP 1770 213TC TEBC 230V|460V Vector/Inverter Duty Motors
Catalog Number: IDM3770T
HP
7 1/2
RPM
1800
Voltage
230V,460V
Frame
213TC
Phase
3
Enclosure
TEBC
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

The Baldor V*S Master® Inverter Duty motor with a TEBC (Totally Enclosed Blower Cooled) enclosure is designed for demanding, continuous-duty applications requiring precise speed control and reliable performance. Offering a 1000:1 constant torque ratio, it supports a wide range of industrial processes. The motor features provisions for encoder mounting to accommodate feedback devices and includes three thermostats—one per phase—for effective thermal protection. Built in standard NEMA frame sizes, this motor is ideal for use in centrifugal pumps, fans, extruders, conveyors, cranes, hoists, winders, web processing, test stands, and other process control systems.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Baldor: V*S Master, Inverter Duty, TEBC (33)

IDM3581T11800|6000230V, 460V143TC $2,657.79
IDM3581T-511800|6000575V143TC $2,657.79
IDM3584T-51 1/21800|6000575V145TC $2,810.63
IDM3584T1 1/21800|6000230V, 460V145TC $2,810.63
IDM3587T21800|6000230V, 460V145TC $3,005.39
IDM3587T-521800|6000575V145TC $3,005.39
IDM3661T31800|6000230V, 460V184TC $3,039.35
IDM3661T-531800|6000575V184TC $3,039.35
IDM3582T11200|6000230V, 460V145TC $3,121.25
IDM3664T21200|6000230V, 460V184TC $3,605.66
IDM3667T1 1/21200|6000230V, 460V182TC $3,724.52
IDM3665T51800|6000230V, 460V184TC $4,061.11
IDM3665T-551800|6000575V184TC $4,061.11
IDM3764T31200|6000230V, 460V213TC $4,715.32
IDM3770T-57 1/21800|6000575V213TC $4,896.12
IDM3770T7 1/21800|6000230V, 460V213TC $4,896.12
IDM3774T-5101800|6000575V215TC $5,245.70
IDM3774T101800|6000230V, 460V215TC $5,245.70
IDM2333T-5151800|5000575V256TC $5,701.13
IDM2333T151800|5000230V, 460V256TC $5,701.13
IDM3768T51200|6000230V, 460V215TC $5,771.05
IDM2334T-5201800|5000575V256TC $6,089.68
IDM2334T201800|5000230V, 460V256TC $6,089.68
IDM4103T251800|4000230V, 460V286T $7,508.96
IDM2276T7 1/21200|5000230V, 460V254TC $8,298.00
IDM4104T301800|4000230V, 460V286T $8,613.64
IDM2332T101200|5000230V, 460V256TC $10,138.79
IDM4110T401800|3900230V, 460V324T $11,646.97
IDM4100T151200|4000230V, 460V284T $12,019.54
IDM4115T501800|3900230V, 460V326T $13,071.26
IDM4102T201200|4000230V, 460V286T $13,531.70
IDM4111T251200|3500230V, 460V324T $15,421.44
IDM4117T301200|3800230V, 460V326T $17,164.35

V*S Master, Inverter Duty, TEBC

Features

  • Available in TENV, TEFC, and TEBC enclosures with 10001 constant torque capability
  • Encoder mounting provisions included
  • Equipped with three thermostats (one per phase) for temperature monitoring
  • Offered in standard NEMA frame sizes

Applications

  • Ideal for centrifugal pumps and fans
  • Suitable for extruders, conveyors, cranes, hoists, and winding equipment
  • Used in web processing, industrial control systems, and test stand operations
Electrical Data
Rated Motor Output Power
7 1/2 HP
Rated Motor Speed
1800, 6000 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
9.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
J
Nominal Efficiency
91.7
Nominal Power Factor
81
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
213TC
Enclosure
TEBC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
170lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
29.14"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
3-Year
