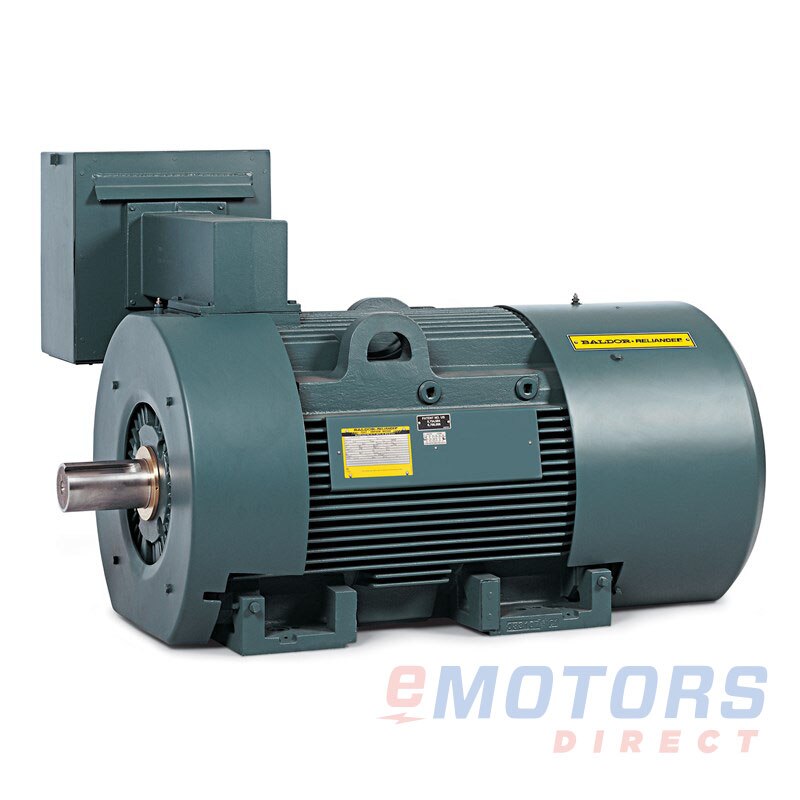

Baldor ECP50606S-2340

Baldor · General Purpose
600 HP 1200 G5012 TEFC 2300V|4100V General Purpose
Catalog Number: ECP50606S-2340
HP
600
RPM
1200
Voltage
2300V,4100V
Frame
5012
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

Baldor's extensive line of General Purpose motors are available in a wide variety of construction enclosures from industrial steel band open designs to harsh applications requiring totally enclosed cast iron designs in both single and three phase.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Baldor: General Purpose (599)

M3454-C1/41800230V, 460V48C $404.49
M3457-C1/33600230V, 460V48C $408.76
NM3454-C1/41800230V, 460V48C $417.83
M3460-C1/23600230V, 460V48C $453.03
M3458-C1/31800230V, 460V48C $464.24
L3408-C1/23600115V, 208-230V48C $472.10
M3463-C3/43600230V, 460V48C $485.58
M3452-C1/61200230V, 460V48C $517.05
M3461-C1/21800230V, 460V48C $521.32
L3409-C1/21800115V, 208-230V48C $521.57
M3464-C3/41800230V, 460V48C $552.80
M3455-C1/41200230V, 460V48C $560.80
L3409-50-C1/21800110V, 220V48C $589.51
L3409M-C1/21800115V, 208-230V48C $600.37
L3509-C13600115V, 208-230V56HC $661.91
L3407-C1/31200115V, 208-230V48C $663.96
L3509M-C13600115V, 230V56HC $720.07
L3510-C11800115V, 208-230V56HC $737.99
L3513-C1 1/23600115V, 208-230V56HC $813.54
L3514-C1 1/21800115V, 208-230V56HC $818.97
L3510M-C11800115V, 208-230V56HC $841.80
L3510A-C11800115V, 208-230V56HC $864.63
L3509-D13600115V, 208-230V56HD $892.70
L3513M-C1 1/23600115V, 230V56HC $899.41
L3514M-C1 1/21800115V, 208-230V56HC $922.78
L3509M-D13600115V, 230V56HD $950.86
L3510-D11800115V, 208-230V56HD $968.78
L3505-C1/21200115V, 208-230V56HC $971.69
M3560-C1/2900230V, 460V56HC $974.35
L3515-C23600115V, 208-230V56HC $978.21
L3514A-C1 1/21800115V, 230V56HC $984.19
PL1327M-C53600230V56HC $987.97
L3515M-C23600115V, 230V56HC $1,014.08
L3513-D1 1/23600115V, 208-230V56HD $1,044.33
L3514-D1 1/21800115V, 208-230V56HD $1,049.76
L3510M-D11800115V, 208-230V56HD $1,072.59
L3508-C3/41200115V, 208-230V56HC $1,090.71
L3510A-D11800115V, 208-230V56HD $1,095.42
L3513M-D1 1/23600115V, 230V56HD $1,130.20
L3514M-D1 1/21800115V, 208-230V56HD $1,153.57
EL3510-D11800115V, 208-230V56HD $1,184.56
L3505-D1/21200115V, 208-230V56HD $1,202.48
M3560-D1/2900230V, 460V56HD $1,205.14
L3515-D23600115V, 208-230V56HD $1,209.00
L3514A-D1 1/21800115V, 230V56HD $1,214.98
L3516TM-C21800208-230V56HCZ $1,236.72
L3515M-D23600115V, 230V56HD $1,244.87
EL3514-D1 1/21800115V, 230V56HD $1,286.72
L3508-D3/41200115V, 208-230V56HD $1,321.50
L3516TM-D21800208-230V56HDZ $1,467.51
Electrical Data
Rated Motor Output Power
600 HP
Rated Motor Speed
1200 RPM
Rated Motor Voltage
2300V,4100V
Rated Motor Current
79 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
95.4
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
5012
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
6500lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
86.07"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
-
