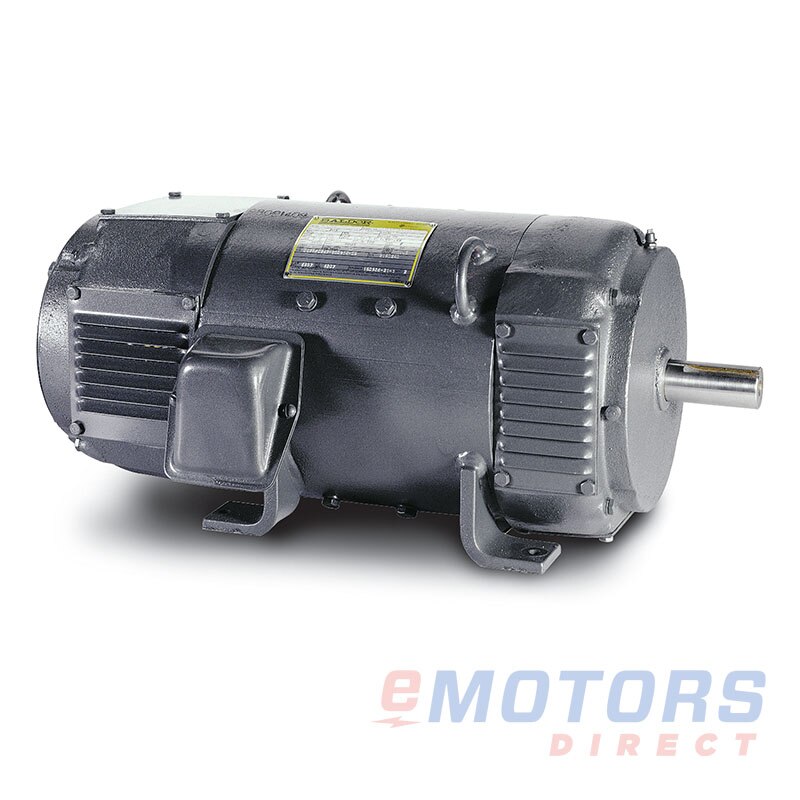

Baldor D50100P

Baldor · SCR Round, DPFG, Rigid Base
100 HP 1750 368AT DPFG 500V DC Motor
Catalog Number: D50100P
HP
100
RPM
1800,2500
Voltage
500V
Frame
368AT
Phase
DC
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The SCR Round, DPFG, Rigid Base motor from Baldor features high dielectric stability and a low moment of inertia armature, providing quick response times. It comes with a thermostat on the interpole, constant pressure brush springs, and longer brushes, all of which reduce maintenance needs. The motor is equipped with a Class F insulation system and includes grease fittings and reliefs for easy bearing maintenance. It is also tachometer adaptable and blower-ventilated with a built-in filter, making it suitable for a wide range of applications. This motor is ideal for conveyors, plastic extruders, packaging machinery, and other constant torque applications.

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

SCR Round, DPFG, Rigid Base

Features

  • Excellent dielectric stability for dependable performance
  • Low inertia armature for quick response times
  • Thermostat integrated on the interpole for enhanced protection
  • Constant pressure brush springs and extended brushes for minimal maintenance
  • Durable Class F insulation system
  • Grease fittings and reliefs included for efficient bearing maintenance
  • Adaptable for tachometer integration
  • Blower-ventilated design with an included filter for improved cooling

Applications

  • Conveyor systems
  • Plastic extrusion machinery
  • Packaging equipment
  • Various constant torque applications
Electrical Data
Rated Motor Output Power
100 HP
Rated Motor Speed
1750, 2000 RPM
Rated Motor Voltage
500V
Rated Motor Current
0 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
368AT
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
1100lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
38.88"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6213
NDE Bearing
6211
Shaft Diameter
2.375"
Shaft Length
4.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
USA
Warranty
2-Year
