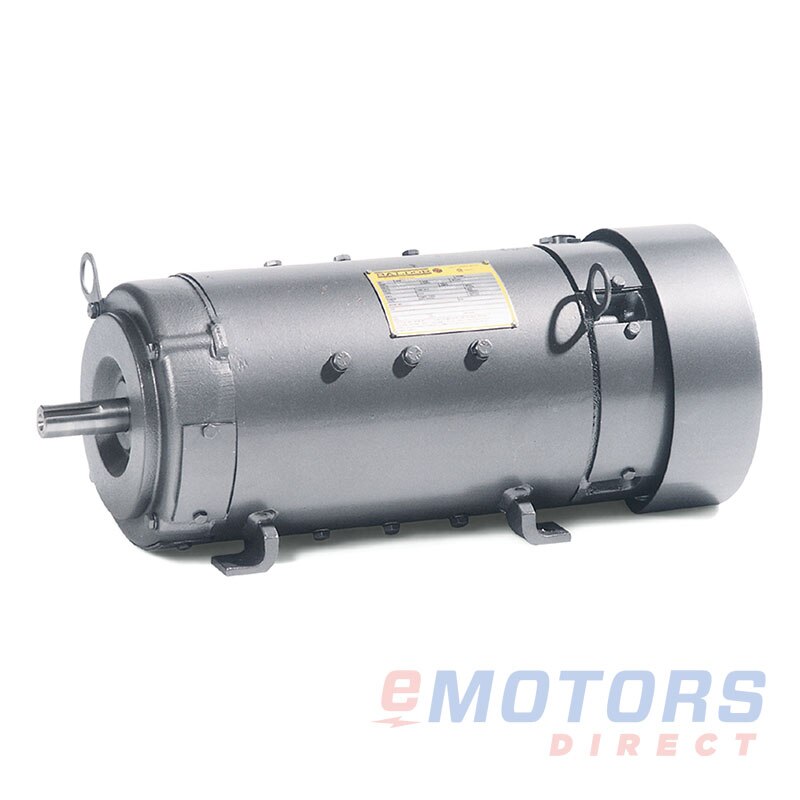

Baldor D2525P

Baldor · SCR Round, TEFC, Rigid Base
25 HP 1750 328AT TEFC 240V DC Motor
Catalog Number: D2525P
HP
25
RPM
1800,2500
Voltage
240V
Frame
328AT
Phase
DC
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The SCR Round, TEFC, Rigid Base motor from Baldor is designed for durability and efficiency in demanding applications. It features a totally enclosed fan-cooled (TEFC) construction, ensuring protection against dust and moisture while maintaining reliable performance. With a rigid base for secure mounting, this motor is built to withstand tough environments. Its low moment of inertia armature enables quick response times, and it includes a thermostat on the interpole for added protection. The motor is equipped with constant pressure brush springs and longer brushes to minimize maintenance requirements. It also incorporates a Class F insulation system, grease fittings, and reliefs for convenient bearing maintenance. Additionally, it is tachometer adaptable and features blower ventilation with a filter for efficient cooling. Ideal for use in applications such as conveyors, plastic extruders, packaging machinery, and other constant torque applications, this motor provides long-lasting, dependable performance.

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

SCR Round, TEFC, Rigid Base

Features

  • Excellent dielectric stability for dependable performance
  • Low inertia armature for quick response times
  • Thermostat integrated on the interpole for enhanced protection
  • Constant pressure brush springs and extended brushes for minimal maintenance
  • Durable Class F insulation system
  • Grease fittings and reliefs included for efficient bearing maintenance
  • Adaptable for tachometer integration
  • Blower-ventilated design with an included filter for improved cooling

Applications

  • Conveyor systems
  • Plastic extrusion machinery
  • Packaging equipment
  • Various constant torque applications
Electrical Data
Rated Motor Output Power
25 HP
Rated Motor Speed
1750, 2300 RPM
Rated Motor Voltage
240V
Rated Motor Current
0 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
328AT
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
872lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
42.45"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6211
NDE Bearing
6210
Shaft Diameter
2.125"
Shaft Length
4.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
USA
Warranty
2-Year
