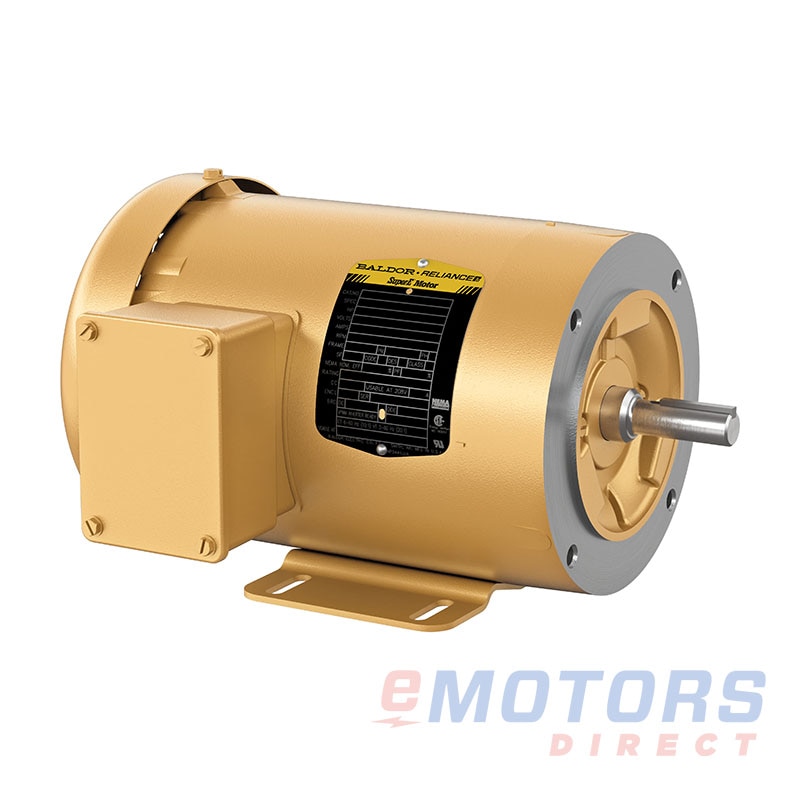

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor CEM3610T

Baldor · General purpose, three phase, totally enclosed, C-Face, foot mounted
3 HP 3450 182TC TEFC 230V|460V General Purpose AC Motors
Catalog Number: CEM3610T
HP
3
RPM
3600
Voltage
230V,460V
Frame
182TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor General Purpose three-phase motor is engineered for a variety of applications, providing reliable and efficient performance. Designed with a totally enclosed construction, this motor is built to protect against dust, dirt, and other environmental elements, ensuring long-term durability. Featuring a C-Face design, it allows for easy mounting and alignment with a wide range of equipment. The foot-mounted configuration further enhances stability and secure installation. With its versatility, this motor is suitable for both commercial and industrial uses, offering high efficiency and longevity in demanding conditions.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

Baldor: General purpose, three phase, totally enclosed, C-Face, foot mounted (113)

CNM3454/351/41750230V, 460V56C $708.47
CENM354611760230V, 460V56C $1,035.20
CEM3615T-551750575V184TC $1,189.53
CEM3615T51750230V, 460V184TC $1,189.53
CEM3613T-553450575V184TC $1,419.38
CEM3613T53450230V, 460V184TC $1,419.38
CEM3614T21175230V, 460V184TC $1,499.02
CEM3661T-531755575V182TC $1,657.45
CEM3661T31755230V, 460V182TC $1,657.45
CEM3665T-551750575V184TC $1,692.76
CEM3710T-57 1/21770575V213TC $1,758.43
CEM3710T7 1/21770230V, 460V213TC $1,758.43
CEM3664T21165230V, 460V184TC $1,806.04
CEM3616T7 1/23450230V, 460V184TC $1,841.36
CEM3714T-5101770575V215TC $1,962.85
CEM3714T101770230V, 460V215TC $1,962.85
CEM3704T31160230V, 460V213TC $2,011.28
CEM3709T7 1/23520230V, 460V213TC $2,168.09
CEM3711T-5103490575V215TC $2,195.17
CEM3711T103490230V, 460V215TC $2,195.17
CEM3708T51165230V, 460V215TC $2,247.71
CEM3770T-57 1/21770575V213TC $2,297.78
CEM3770T7 1/21770230V, 460V213TC $2,297.78
CEM3764T31165230V, 460V213TC $2,347.86
CEM3769T-57 1/23500575V213TC $2,374.96
CEM3769T7 1/23510230V, 460V213TC $2,374.96
CEM3774T-5101760575V215TC $2,545.71
CEM3774T101760230V, 460V215TC $2,545.71
CEM3768T51160230V, 460V215TC $2,681.98
CEM3771T-5103490575V215TC $2,738.62
CEM3771T103490230V, 460V215TC $2,738.62
CEM3713T-5153500575V215TC $3,020.19
CEM3713T153500230V, 460V215TC $3,020.19
CEM4106T-5203520575V256TC $4,527.42
CEM4106T203520230V, 460V256TC $4,527.42
CEM4107T253530230V, 460V284TSC $5,924.65
CEM4103T-5251770575V284TC $5,989.51
CEM4103T251775230V, 460V284TC $5,989.51
CEM4108T303525230V, 460V286TSC $6,842.45
CEM4104T-5301775575V286TC $6,910.60
CEM4104T301760230V, 460V286TC $6,910.60
CEM4110T401775230V, 460V324TC $8,875.90
CEM4109T403530230V, 460V324TSC $9,151.73
CEM4115T501775230V, 460V326TC $9,586.83
CEM4114T503540230V, 460V326TSC $9,897.95
CEM4314T601780230V, 460V364TC $13,369.66
CEM4310T603560230V, 460V364TSC $13,522.35
CEM4316T751780230V, 460V365TC $15,410.50
CEM4313T753555230V, 460V365TSC $15,515.58
CEM4400T1001785230V, 460V405TC $19,149.83

General purpose, three phase, totally enclosed, C-Face, foot mounted

Features

  • Designed for 60 Hz operation with 50 Hz specifications for 2, 4, and 6-pole models ranging from 1 to 125 HP
  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2, unless otherwise indicated
  • Easy F1 to F2 conversion on cast iron frames
  • Built for durability, with a 3-year warranty on NEMA Premium® efficient motors

Applications

  • General-purpose use
  • Fans and ventilation
  • Conveying systems
  • Blowers and air handling
  • Compressors and pressure systems
  • Pumps for fluid movement
  • Industrial machinery and equipment
Electrical Data
Rated Motor Output Power
3 HP
Rated Motor Speed
3450 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
7.2/3.6 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
7.9
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
92
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
50lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
15.18"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6203
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
3-Year
