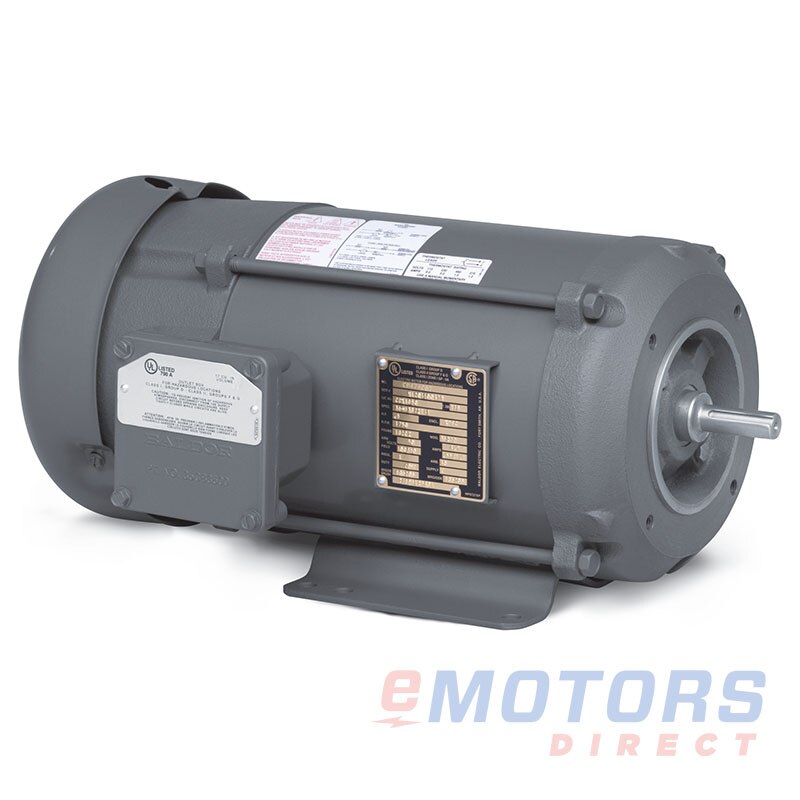

Baldor CDX1850

Baldor · DC Shunt Wound Explosion Proof
1/2 HP 1750 182CZ XPFC 90V Explosion Proof Motors
Catalog Number: CDX1850
HP
1/2
RPM
1800
Voltage
90V
Frame
182CZ
Phase
DC
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
C-Face / Removable Base,C-Face / Rigid,C-Face / Round Body

Product-line overview

The DC Shunt Wound Explosion Proof motor from Baldor is designed for use with NEMA Type K SCR controls and features a NEMA C-Face with a removable base. It includes a normally closed thermostat on the field winding and is equipped with Class F insulation for reliable performance. The motor has a 1.0 service factor and is UL and CSA certified for Division 1, Class I, Group D, and Class II, Group F&G hazardous locations. This motor is ideal for applications such as conveyors and printing or textile equipment where explosion-proof capabilities are required.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

DC Shunt Wound Explosion Proof

Features

  • Compatible with NEMA Type K SCR control
  • NEMA C-Face with a removable base
  • Normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor
  • UL and CSA certified for Division 1, Class I, Group D, and Class II, Group F&G

Applications

  • Conveyors
  • Printing and textile equipment
Electrical Data
Rated Motor Output Power
1/2 HP
Rated Motor Speed
1750 RPM
Rated Motor Voltage
90V
Rated Motor Current
4.9 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
2|4
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182CZ
Enclosure
TEFC-XP
Mounting
C-Face / Removable Base,C-Face / Rigid,C-Face / Round Body
Number of Speeds
-
Approximate Weight
100lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
18.61"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
A
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6205
Shaft Diameter
0.625"
Shaft Length
1.88"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL, UR
Country of Origin
USA
Warranty
2-Year
