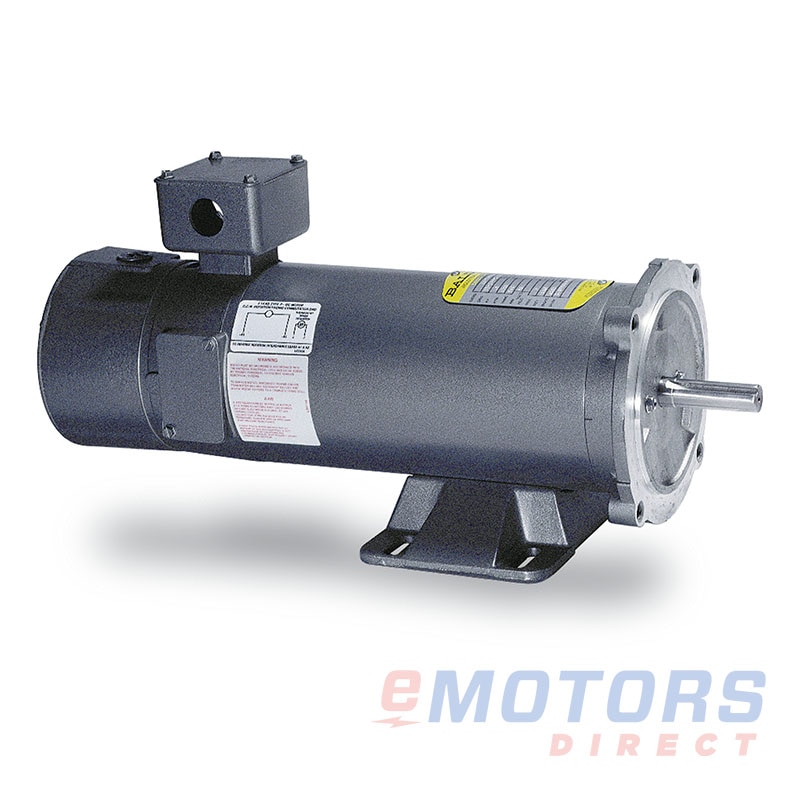

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor CDPT3316

Baldor · Fractional SCR PM Motors, Integral tach
1/3 HP 56C TENV DC Motor
Catalog Number: CDPT3316
HP
1/3
RPM
1800
Voltage
180V
Frame
56C
Phase
DC
Enclosure
TENV
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Baldor’s Fractional SCR Permanent Magnet Motors with integral tachometers are engineered for precise speed control and dependable performance in light industrial applications. These motors feature a compact design with a NEMA C-Face and removable base for versatile mounting options. The integrated tachometer enhances feedback accuracy, making them ideal for applications requiring consistent speed regulation. Built with Class F insulation and double-sealed bearings, they ensure durability and long service life. With a 20:1 constant torque speed range and UL and CSA recognition, these motors are well-suited for use in conveyors, mixers, and packaging equipment.

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Fractional SCR PM Motors, Integral tach

Features

  • NEMA C-Face design with removable base
  • Tachometer compatible
  • Class F insulation for enhanced durability
  • Double-sealed bearings for longer lifespan
  • 201 constant torque speed range
  • UL and CSA recognized for safety standards

Applications

  • Conveyor systems
  • Industrial mixers
  • Packaging machinery
Electrical Data
Rated Motor Output Power
1/3 HP
Rated Motor Speed
1750 RPM
Rated Motor Voltage
180V
Rated Motor Current
1.6 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
F
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
2
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TENV
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
30lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.99"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR, CE, WEEE
Country of Origin
USA
Warranty
2-Year
