Aegis SGR-42-UKIT-2A4

AEGIS · uKIT

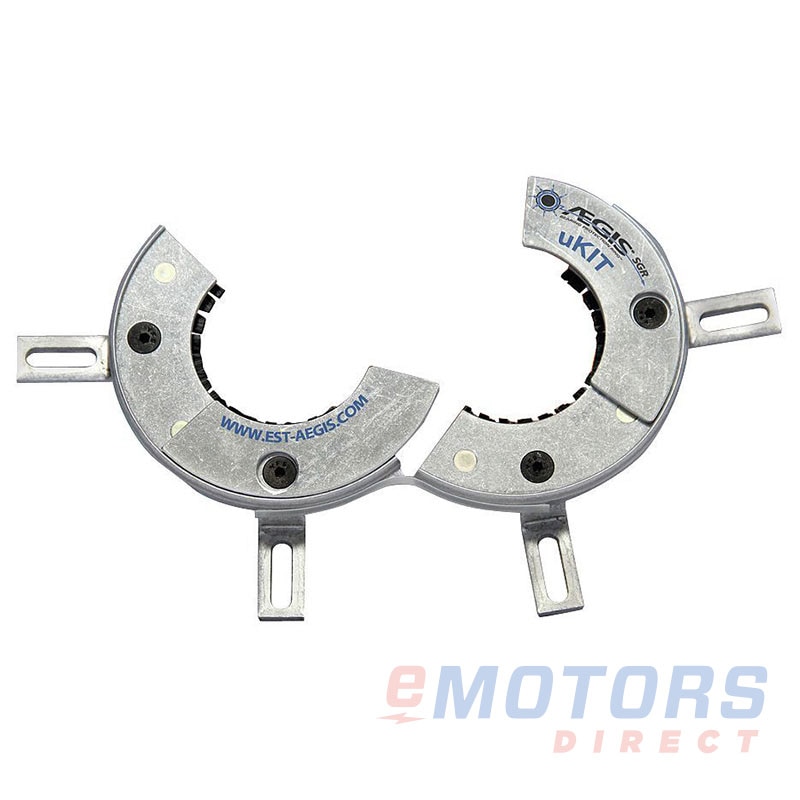

Aegis uKIT Split Shaft Grounding Ring - 42mm
Catalog Number: SGR-42-UKIT-2A4
  • uKIT Split
  • Shaft Diameter: 42mm
This is an uninstalled ring. For a quote on installation please contact customerservice@emotorsdirect.ca

Product-line overview

AEGIS uKIT shaft grounding rings come in solid and split ring configurations with universal mounting brackets. Available for both NEMA and IEC electric motors. Choose your kit based on your motor’s frame size and install easily with screws or conductive epoxy. Protect your bearings with AEGIS.

Final Sale Product

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

Using proprietary Electron Transport Technology, the conductive microfibers inside an AEGIS shaft grounding ring provide the path of least resistance for damaging bearing currents, preventing electrical damage to motor bearings and dramatically extending motor life

The universal mounting brackets allow the Ukit mounting options to fit almost any motor design in NEMA frames from 56 to 449T or IEC frames from 132M to 355M.

Specification

  • Solid Ring and Split Ring
  • Select Ring based on NEMA or IEC Frame size
  • Fits over slingers, seals and shaft shoulders
  • Circumferential Conductive Microfiber rows in Fiberlock Channel
  • Fiber overlaps shaft
  • Two Rows of Fiber
  • External mounting

Recommendation

  • AC Motors Low Voltage up to 500HP (375kW)
  • DC Motors up to 300HP (225kW)
Package Width
5.5"
Package Height
4.5"
Package Length
8"
Weight
1lb
Shaft Diameter
1.654"
  • Data PackageRegister or log in to download
  • BrochureRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Feature SheetRegister or log in to download
  • Dimensional DrawingRegister or log in to download

Downloads unlock once you're signed in.

Product Line Review

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0

There are no reviews for this product yet.

Be the first to write a review

About AEGIS

AEGIS Shaft Grounding Rings are high-performance motor protection devices engineered to prevent bearing damage caused by stray electrical currents. Variable frequency drives (VFDs) and other electrical sources can create currents that lead to pitting, frosting, or fluting in motor bearings, drastically shortening motor life and causing costly repairs and downtime. AEGIS Rings provide a reliable solution by safely diverting these currents away from the bearings, helping your motors run smoothly and efficiently for years.

  • Trusted Performance: Designed and manufactured in Maine, USA by Electro Static Technology (EST), AEGIS Rings have been the industry benchmark for motor protection since 2005. They are relied upon by professionals across industries, from manufacturing and HVAC to pumps and conveyors, for consistent, long-lasting performance.
  • Reduce Operational Downtime: Bearing damage can lead to expensive repairs and unscheduled downtime. AEGIS Rings protect your motors from electrical discharge, helping ensure continuous operation, lower maintenance costs, and longer motor life.
  • Flexible Stock and Build Options: We maintain extensive North American inventory to meet immediate needs, and we can also supply custom sizes to order for unique applications.
  • Simple Sizing and Installation: Choosing the correct AEGIS Ring is easy. Measure your motor’s shaft diameter and select the matching size for a secure connection with the ring’s microfibers. Our technical support team is available to assist with sizing and installation guidance.
