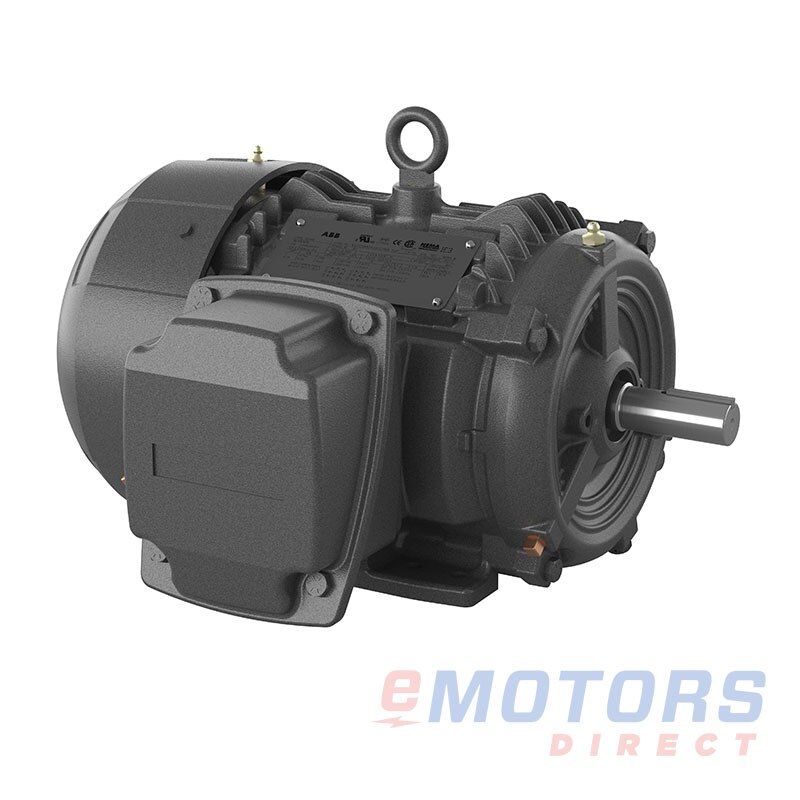

ABB NEMA Motors 1LE23211AA313AA3

ABB NEMA Motors · SD100 Rigid
2 HP 3600 RPM 575 V 145T TEFC Severe Duty Motors
Catalog Number: 1LE23211AA313AA3
HP
2
RPM
3600
Voltage
575V
Frame
145T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The SD100 from ABB NEMA Motors features Class F insulation with a Class B temperature rise and is certified for Division 2, Class I and Class II locations. It is compatible with inverter drives per NEMA MG1 Part 31.4.4.2 and offers NEMA Premium efficiency to reduce energy consumption. Built with a durable cast iron frame, the motor ensures long-lasting operation and is equipped with a bidirectional cooling fan for enhanced thermal management. Its IP55 protection guards against dust and water ingress. The SD100 is suitable for a wide range of applications, including pumps, fans, compressors, and industries such as petrochemical, oil & gas, paper mills, and water and wastewater.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

ABB NEMA Motors: SD100 Rigid (156)

1LE23212AB113AA37 1/21765575V213T $2,726.72
1LE23212AA113AA37 1/23520575V213T $2,736.48
1LE23212AA213AA3103515575V215T $3,283.53
1LE23212AB213AA3101755575V215T $3,385.82
1LE23212AC213AA351165575V215T $3,498.11
1LE23212BB113AA3151770575V254T $4,457.46
1LE23212BC113AA37 1/21175575V254T $4,520.93
1LE23212BA113AA3153530575V254T $4,523.36
1LE23212BB213AA3201770575V256T $5,551.07
1LE23212BD113AA35880575V254T $5,563.28
1LE23212BA213AA3203515575V256T $5,599.89
1LE23212BC213AA3101175575V256T $5,682.90
1LE23212DB113AA3251775575V284TS $6,315.14
1LE23212CB113AA3251775575V284T $6,315.14
1LE23212DA113AA3253525575V284TS $6,576.83
1LE23212CC113AA3151180575V284T $7,211.03
1LE23212CB213AA3301775575V286T $7,347.72
1LE23212DA213AA3303525575V286TS $7,701.69
1LE23212CD113AA310885575V284T $8,570.72
1LE23212CC213AA3201180575V286T $8,783.10
1LE23213BB113AA3401780575V324TS $9,759.54
1LE23213AB113AA3401780575V324T $9,759.54
1LE23213BA113AA3403535575V324TS $10,162.32
1LE23213AC113AA3251185575V324T $10,338.08
1LE23212CD213AA315885575V286T $11,153.40
1LE23213AB213AA3501780575V326T $11,985.81
1LE23213AC213AA3301185575V326T $12,247.01
1LE23213BA213AA3503535575V326TS $13,142.90
1LE23213AD113AA320885575V324T $13,633.58
1LE23213CC113AA3401185575V364T $16,606.82
1LE23213DB113AA3601780575V364TS $17,192.69
1LE23213CB113AA3601780575V364T $17,192.69
1LE23213DA113AA3603565575V364TS $17,290.34
1LE23213CD113AA330885575V364T $18,737.91
1LE23213CC213AA3501185575V365T $19,065.03
1LE23213DA213AA3753565575V365TS $21,711.18
1LE23213CB213AA3751780575V365T $21,794.18
1LE23214AC113AA3601185575V404T $22,336.10
1LE23213CD213AA340885575V365T $22,660.77
1LE23214AC213AA3751185575V405T $26,295.57
1LE23214AB213AA31001780575V405T $26,852.49
1LE23214BB213AA31001780575V405TS $26,930.27
1LE23214BA213AA31003570575V405TS $29,095.50
1LE23214AD213AA360885575V405T $30,923.91
1LE23213DB213AA3751780575V365TS Contact for Pricing
1LE23214AD113AA350885575V404T Contact for Pricing
1LE23213BB213AA3501780575V326TS Contact for Pricing
1LE23212DB213AA3301775575V286TS Contact for Pricing
1LE23213AD213AA325885575V326T Contact for Pricing
1LE23212BD213AA37 1/2875575V256T Contact for Pricing

GP100A Rigid

Key Features

  • Class F insulation system for enhanced thermal durability
  • Class B temperature rise for dependable continuous operation
  • Bidirectional cooling fan allows flexible installation orientation
  • Lightweight aluminum frame minimizes overall motor weight
  • IP55 enclosure provides protection against dust and water jets

Ideal for Use In

  • Pumps
  • Fans
  • Compressors
  • Conveyors
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
3515 RPM
Rated Motor Voltage
575V
Rated Motor Current
-
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
85.5
Nominal Power Factor
87.6
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
72.753lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.875
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
MEXICO
Warranty
-
  • Data PackageRegister or log in to download
  • Dimensional DrawingRegister or log in to download

Downloads unlock once you're signed in.

Product Line Review

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0

There are no reviews for this product yet.

Be the first to write a review

About ABB NEMA Motors

Manufactured by ABB, a global leader in electric motors, these NEMA-style motors are engineered to meet the demands of U.S. industries. From manufacturing plants and water treatment facilities to energy and mining operations, ABB NEMA motors deliver consistent, efficient, and safe performance.

ABB’s NEMA motor lineup covers a wide spectrum of applications. Lightweight and versatile, the GP100A is ideal for general purpose tasks, while the DP200 Crush+ offers extreme durability for heavy-duty industrial use. Designed with modularity and flexibility in mind, ABB NEMA motors provide reliable solutions that fit your installation requirements, ensuring maximum uptime, operational efficiency, and long-term value.

Where are ABB NEMA Motors Manufactured?

Located in Guadalajara, Mexico, this facility has been manufacturing top-quality motors since 1972, originally as part of Siemens. In 2023, ABB took over the operation following its acquisition of Siemens’ low voltage NEMA motor business, continuing the legacy under the ABB brand.

Key Features of ABB NEMA Motors

  • Adjustable When Space is Tight: Symmetrical frames on all motors frame sizes 400 and below, allowing conversion from F1 to F2 by swapping endplates and rotor.
  • Ready for Intermittent Overloads: NEMA T-frames in TEFC construction with service factor 1.15 or higher, unless otherwise noted.
  • Flexible Mounting: Dual mounting holes on most cast iron foot-mounted motors (143T-145T, 182T-184T) for flexible installation.
  • Seamless Siemens Replacement: ABB NEMA catalogue numbers remain consistent with legacy Siemens motors, simplifying upgrades and replacements.



Whether your application calls for general purpose, severe duty, explosion proof, or pump motors, ABB NEMA motors deliver durable, reliable performance and seamless compatibility with existing Siemens systems.
